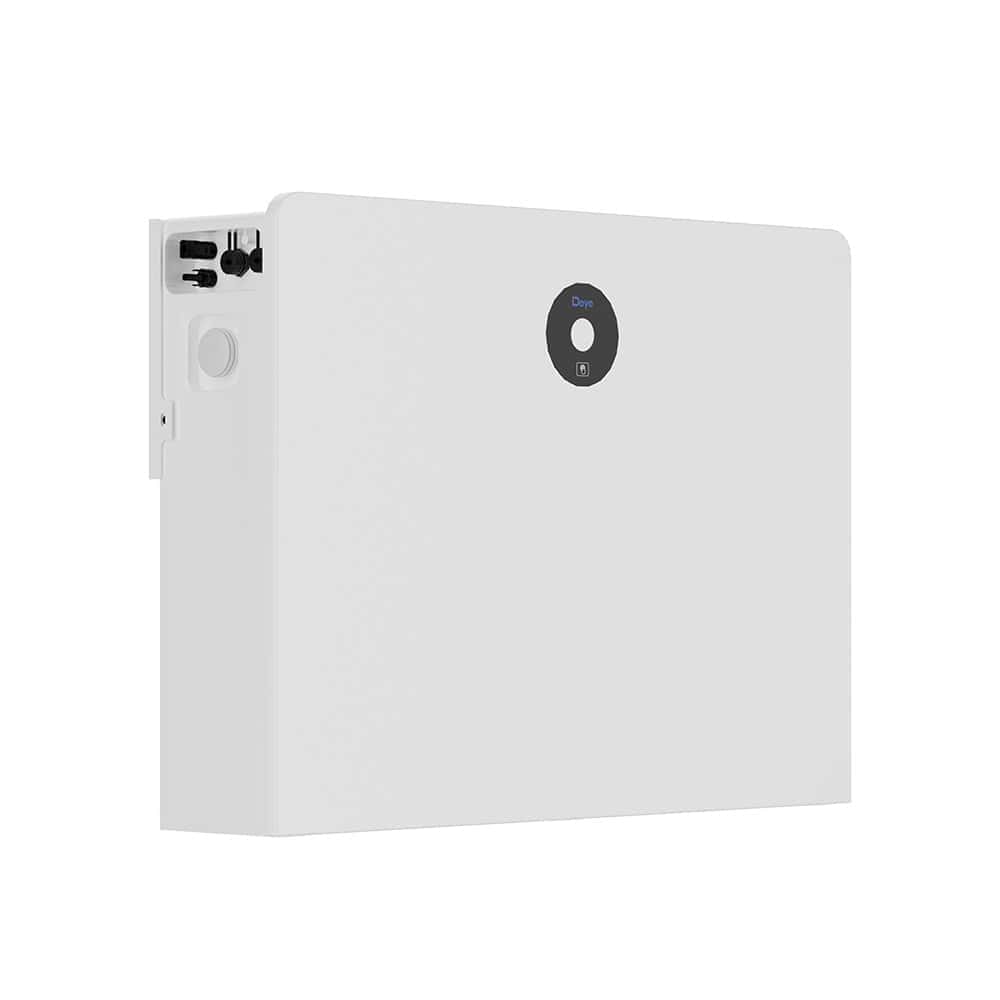

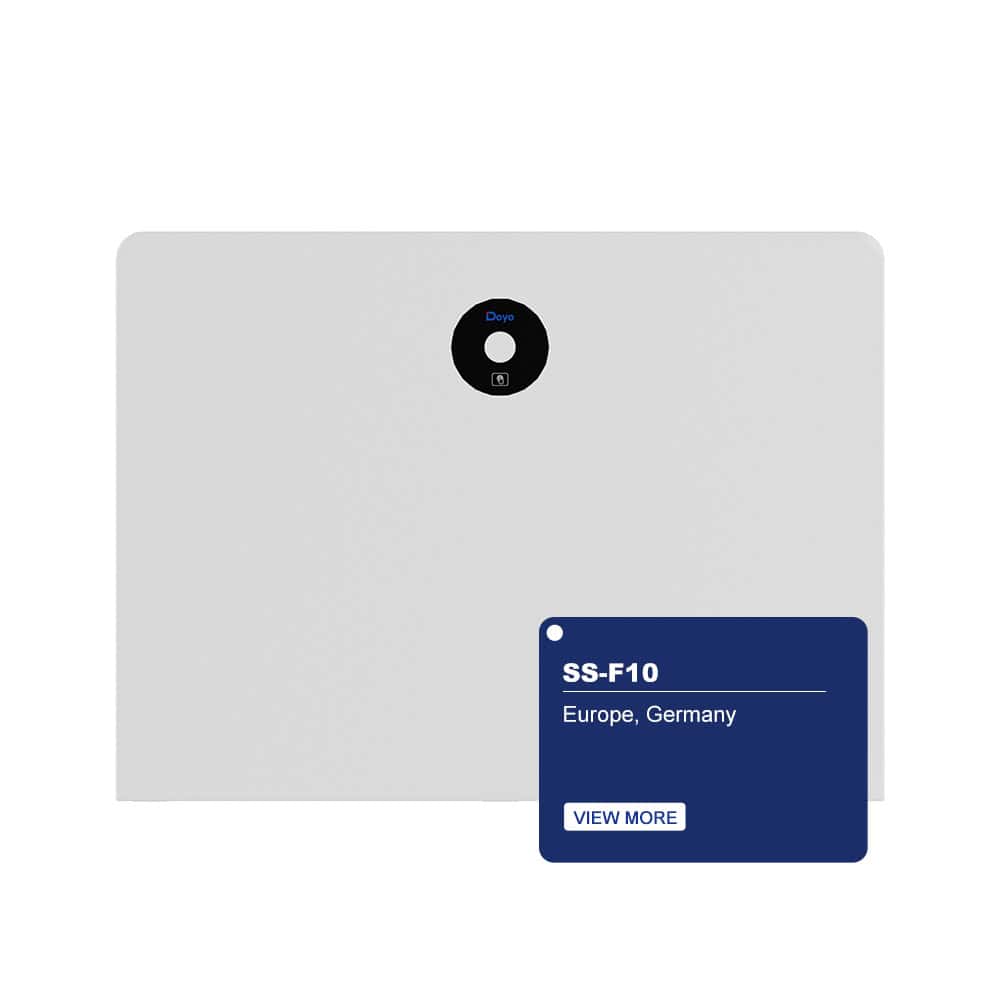

The Deye SS-F10 (EU) represents the next generation of high-voltage home energy storage systems, built for reliability, scalability, and high performance. Powered by advanced LiFePO₄ battery technology, this 10.24kWh module delivers robust power and exceptional cycle life, making it ideal for both residential and commercial solar systems.
With its integrated BMS, IP65-rated waterproof design, and flexible wall or floor mounting, the SS-F10 combines intelligent energy management with outstanding safety and efficiency — ensuring stable, long-term energy storage in any condition.
🔋 Key Features
✅ High Energy Capacity & Voltage
-
Delivers 10.24kWh nominal energy at 512V (20Ah).
-
Supports parallel connection of up to 6 units for a total of 60kWh capacity.
✅ Advanced LiFePO₄ Battery Technology
-
Built with high-quality lithium iron phosphate (LiFePO₄) cells.
-
Offers ≥6,000 cycles at 70% end-of-life capacity, ensuring long-term performance.
-
Eco-friendly and thermally stable chemistry for maximum safety.
✅ Integrated Smart BMS
-
Features cell-to-pack integration and intelligent BMS for real-time protection.
-
Monitors voltage, temperature, and current for each cell to prevent damage.
-
Supports CAN2.0 and RS485 communication for inverter compatibility and remote monitoring.
✅ Durable & Flexible Design
-
IP65 waterproof enclosure for outdoor or indoor installation.
-
Wall-mounted or floor-mounted setup with quick MC4 connectors.
-
Built-in LCD screen and fault code indicators for user-friendly operation.
✅ Wide Environmental Range
-
Operates reliably between -20°C to 55°C, with 0%–100% humidity tolerance.
-
Designed for altitudes up to 3,000 meters.
✅ Scalable System & Longevity
-
Connect up to 6 units in parallel for flexible energy expansion.
-
Backed by a 10-year warranty and European-certified quality.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Deye SS-F10 (EU) |
| Cell Chemistry | LiFePO₄ |
| Nominal Energy | 10.24 kWh |
| Nominal Voltage (Vdc) | 512 |
| Capacity (Ah) | 20 |
| Operating Voltage (Vdc) | 448 – 584 |
| Recommended Charge/Discharge Current (A) | 10 |
| Maximum Charge/Discharge Current (A) | 20 |
| Cycle Life | ≥6,000 (25±2°C, 0.5C/0.5C, 70%EOL) |
| Communication Ports | CAN2.0, RS485 |
| Status Indicator | SOC, Fault Code |
| Protection Rating | IP65 |
| Dimensions (W × D × H) | 850 × 170 × 650 mm |
| Weight | 85 kg |
| Operating Temperature (°C) | -20 to 55 |
| Storage Temperature (°C) | 0 to 35 |
| Humidity | 0% – 100% RH |
| Altitude | ≤3000m |
| Installation Type | Wall-Mounted / Floor-Mounted |
| Recommended Depth of Discharge | 90% |
| Warranty | 10 Years |
| Certification | Europe, Germany |
💡 Highlights at a Glance
-
🔋 10.24kWh High Voltage LiFePO₄ Battery for strong, stable power output
-
🧠 Intelligent BMS with integrated protection and fault diagnostics
-
🏠 Compact, Wall/Floor Mount Design with IP65 waterproof protection
-
⚙️ Scalable to 6 Units (60kWh) for flexible system growth
-
🌡️ Wide Temperature Operation: -20°C to 55°C
-
♻️ Eco-Friendly & Safe LiFePO₄ chemistry ensures zero thermal runaway
-
🕒 Long Lifespan: Over 6,000 charge cycles with 10-year warranty
📦 Package Includes
-
1× Deye SS-F10 Battery Module
-
Wall/Floor Mounting Brackets
-
Power and Communication Cables
-
User & Installation Manual
🔧 Applications
-
Home & Residential Solar Energy Storage
-
Off-grid & Hybrid Power Systems
-
Smart Energy Management
-
Commercial Backup Power
-
Industrial Solar Integration
🌍 Sustainability & Safety
The Deye SS-F10 (EU) uses environmentally friendly LiFePO₄ cells — non-toxic, thermally stable, and recyclable. Its intelligent BMS ensures every cell operates within optimal limits, while the IP65-rated casing provides protection from dust, humidity, and harsh weather — making it one of the most durable home energy storage solutions on the market.
